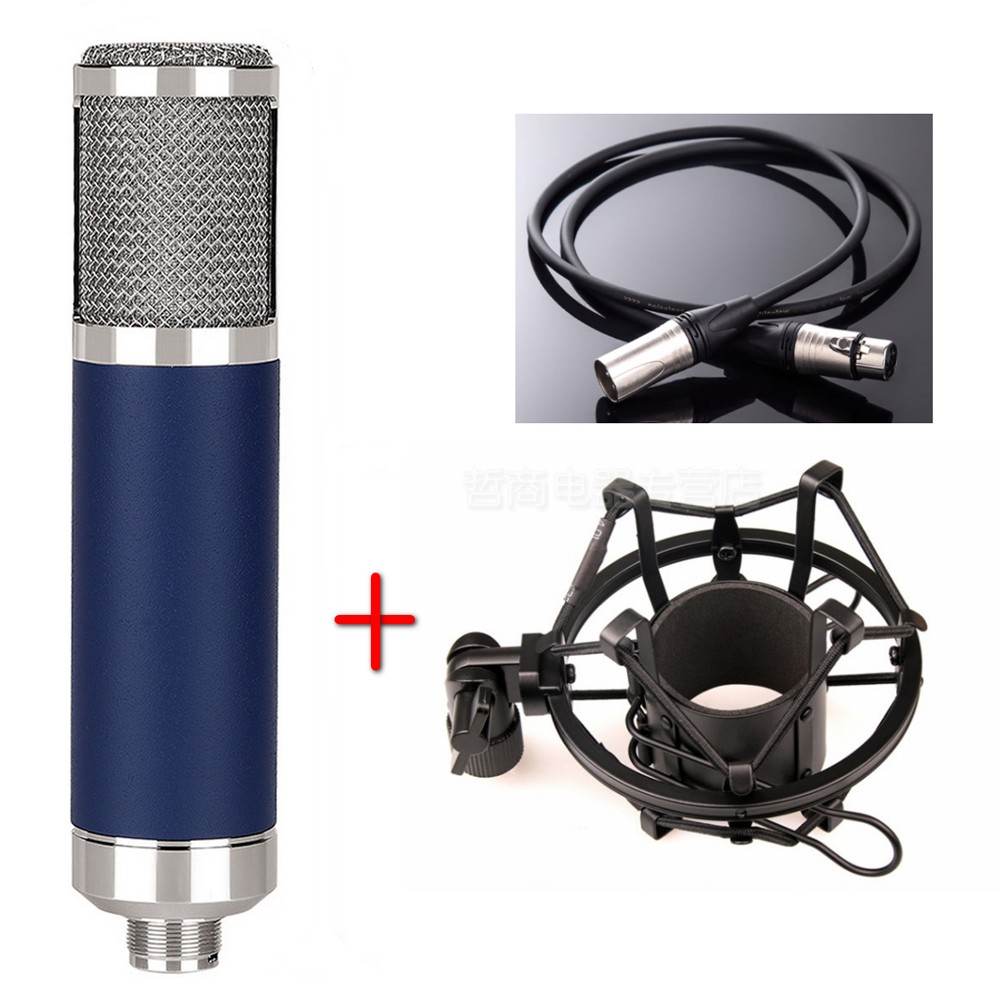

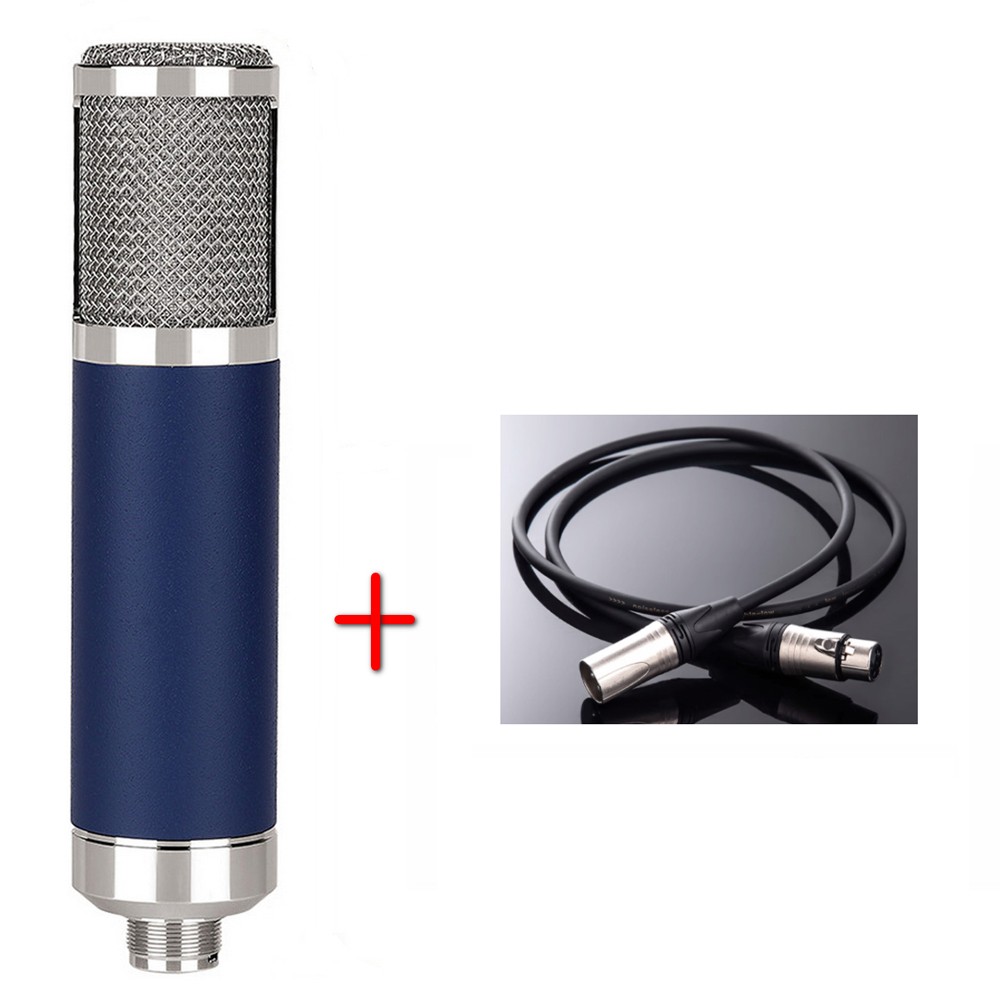

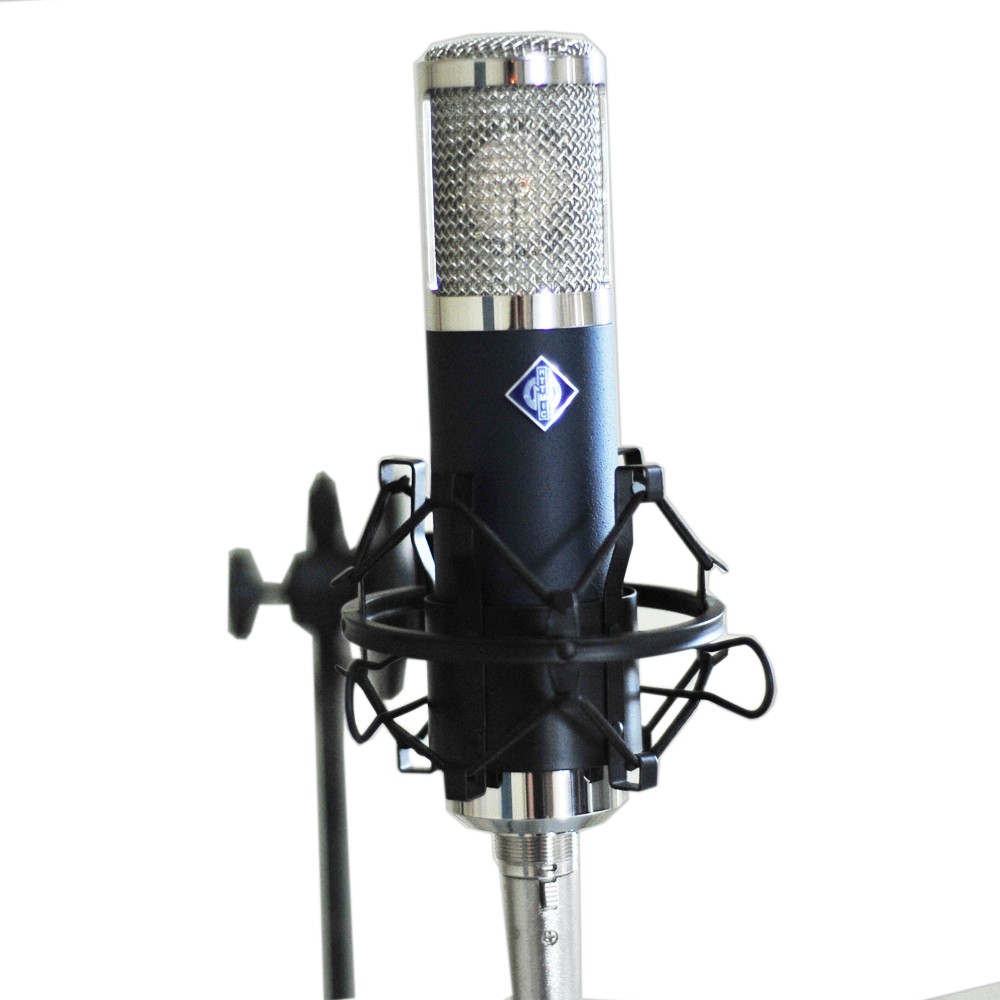

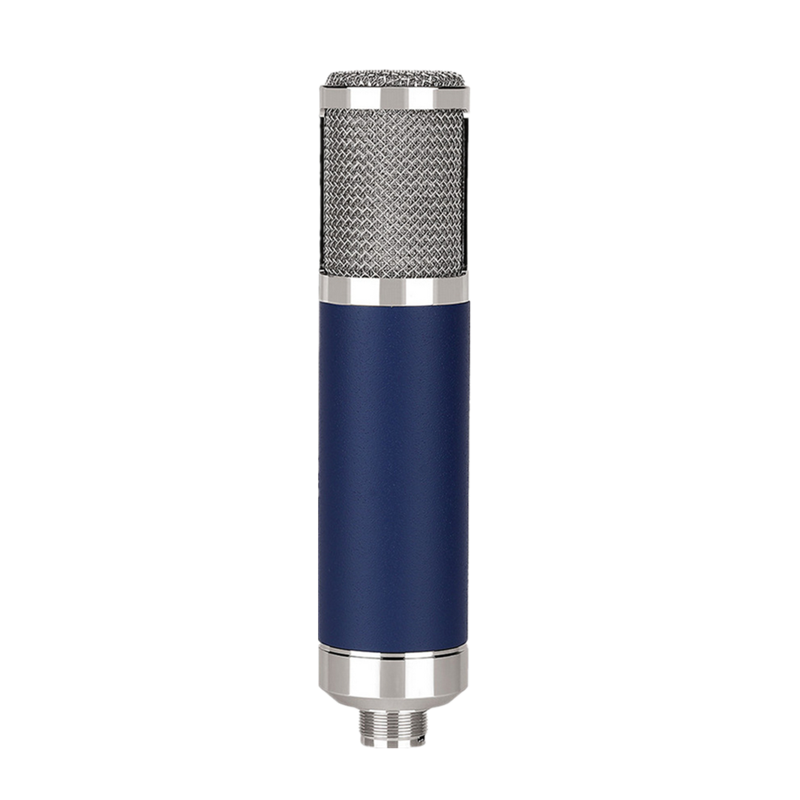

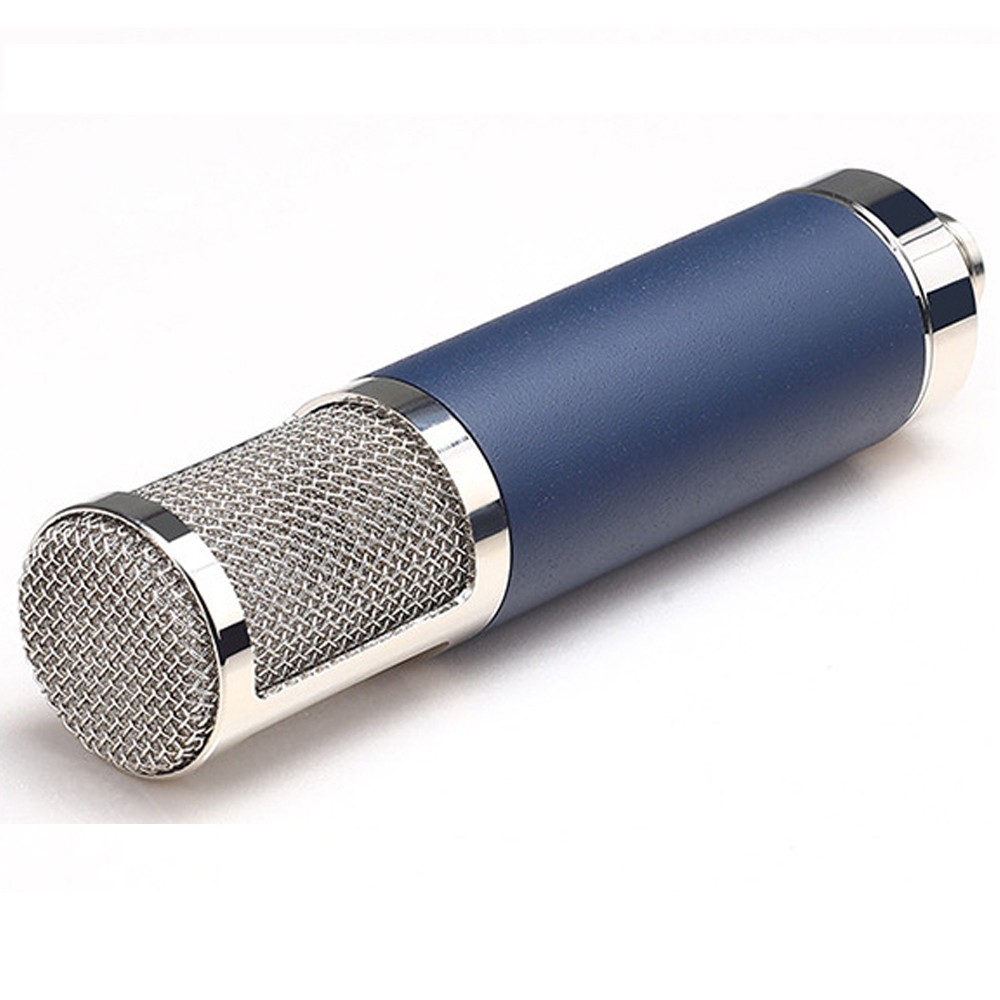

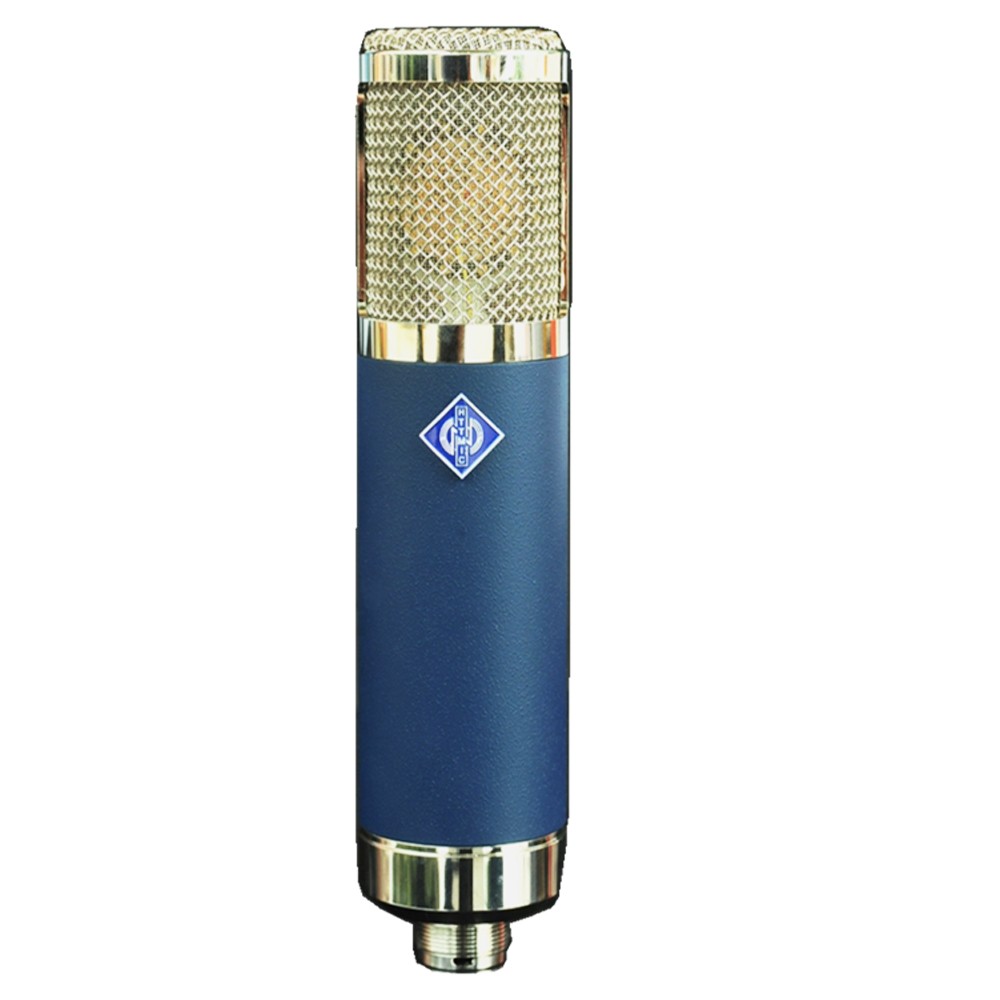

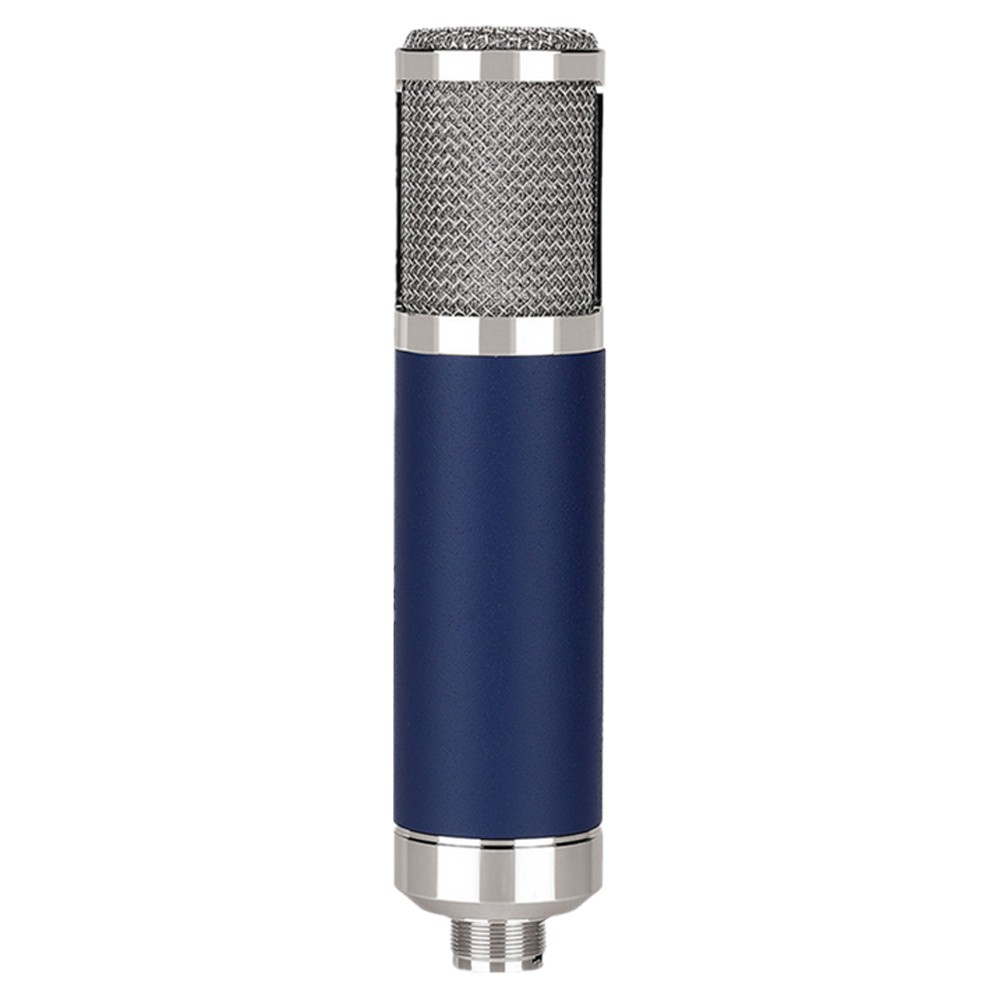

Recording condenser microphone, dot matrix large diaphragm gold-plated microphone, professional recording and live streaming 48V transistor

Unprofessional person look at the out look, while professional person look at internal performance

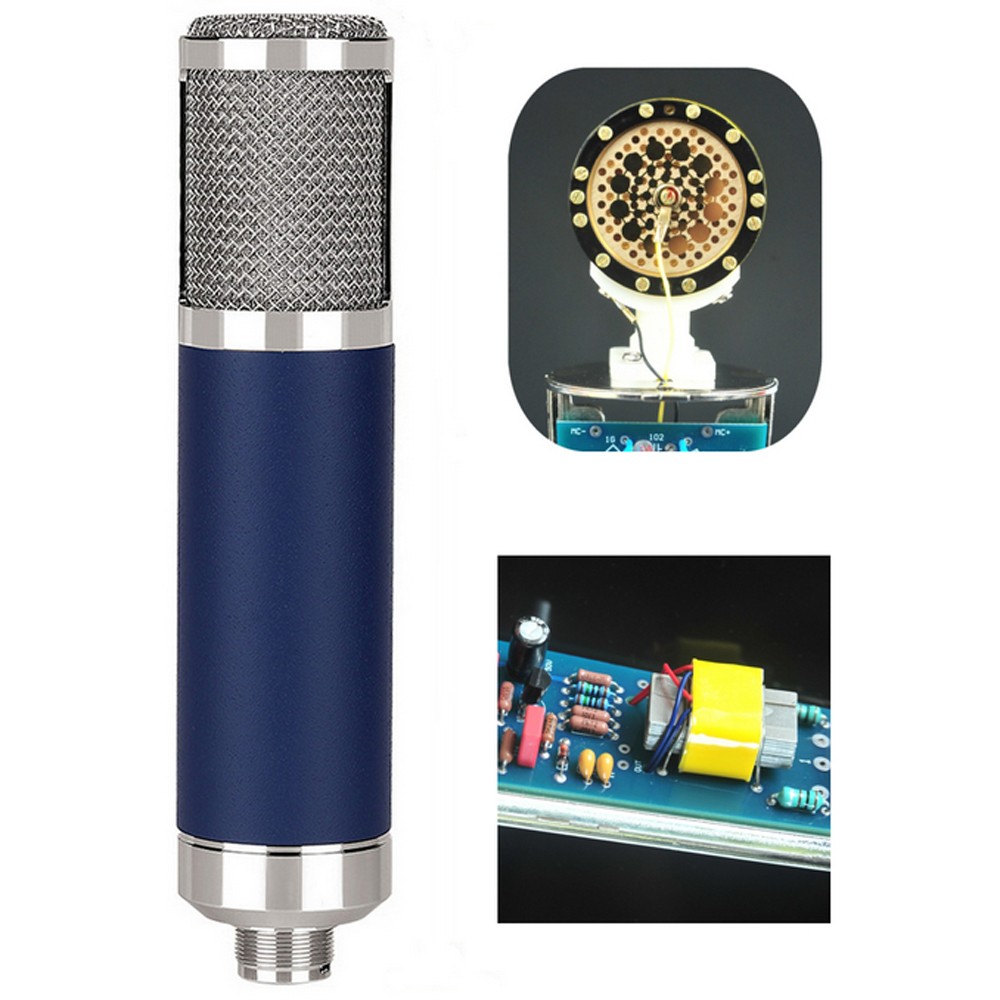

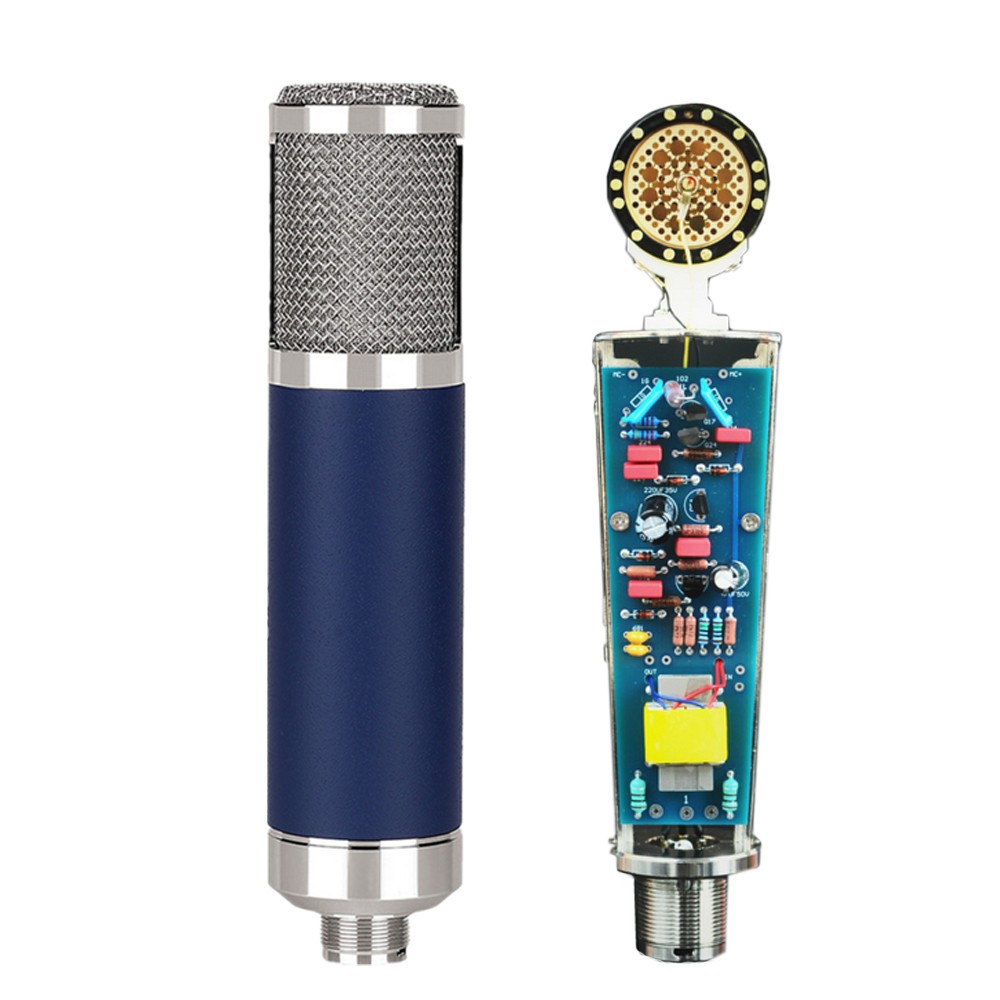

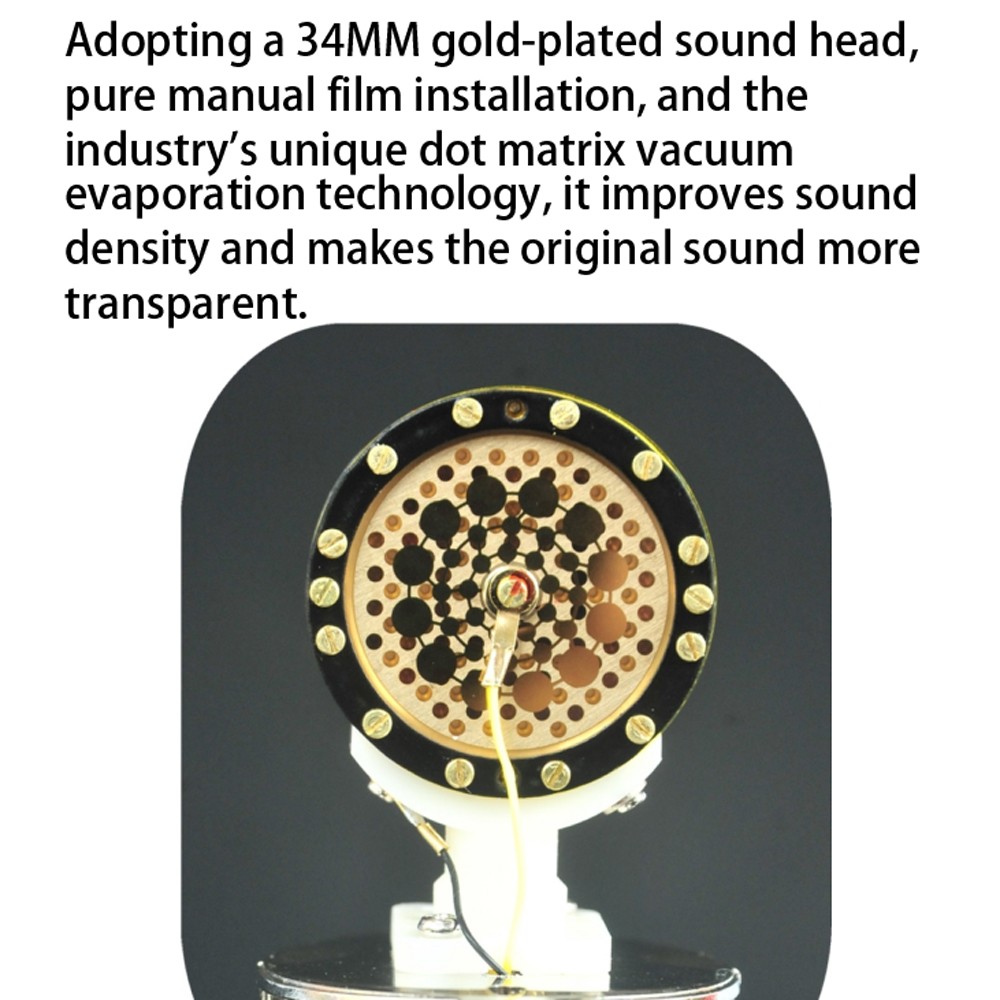

Adopting a 34MM gold-plated sound head, pure manual film installation, and the industry's unique dot matrix vacuum evaporation technology, it improves sound density and makes the original sound more transparent.

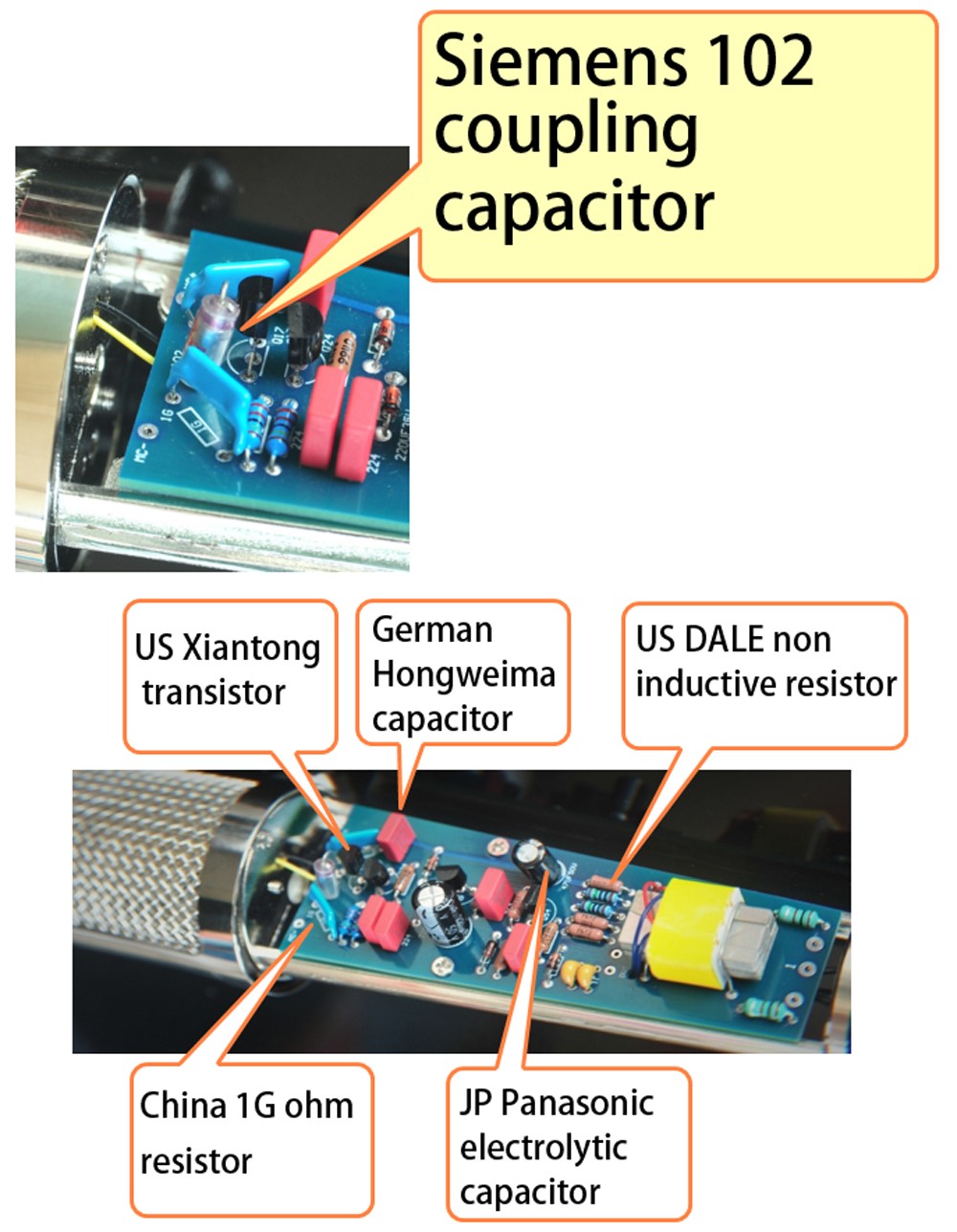

The treasured Siemens 102 coupling capacitor is a mythical component in the world.

American Xiantong transistor, German Hongweima capacitor, American DALE non inductive resistor, domestic 1G ohm resistor, Japanese Panasonic electrolytic capacitor

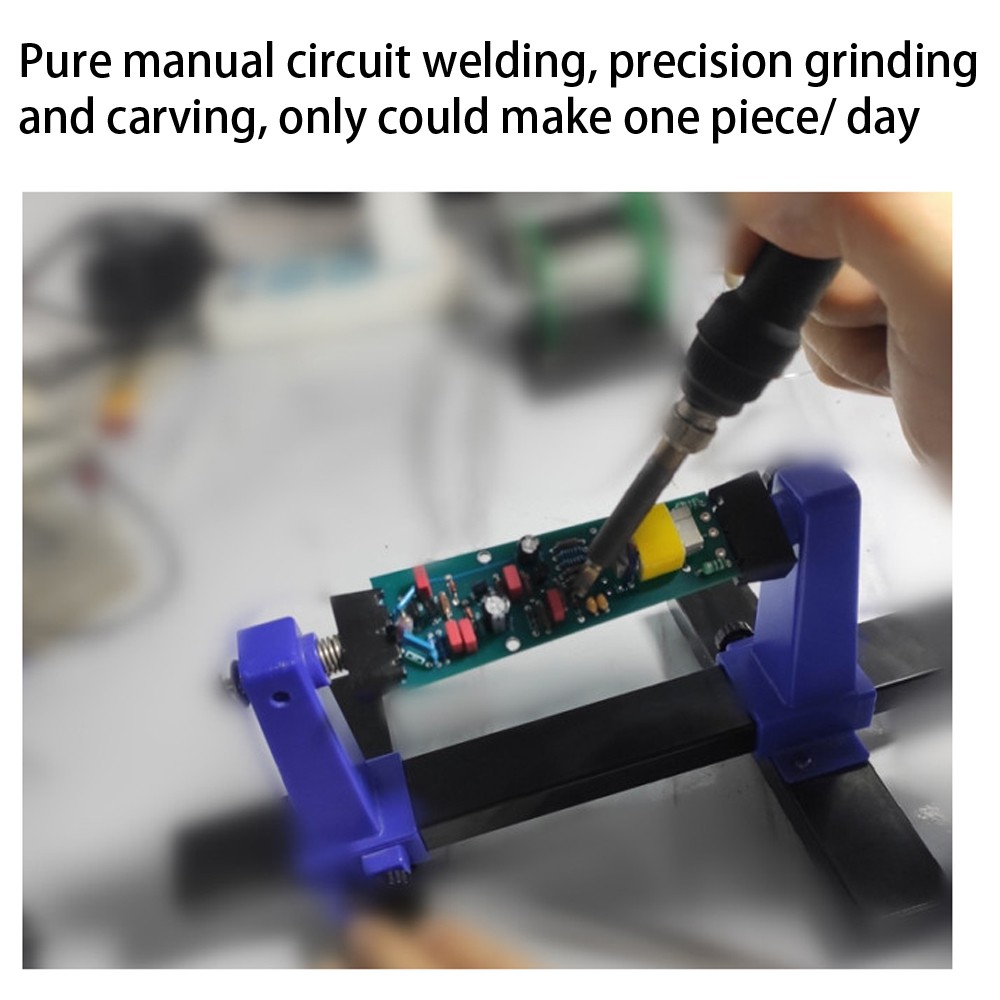

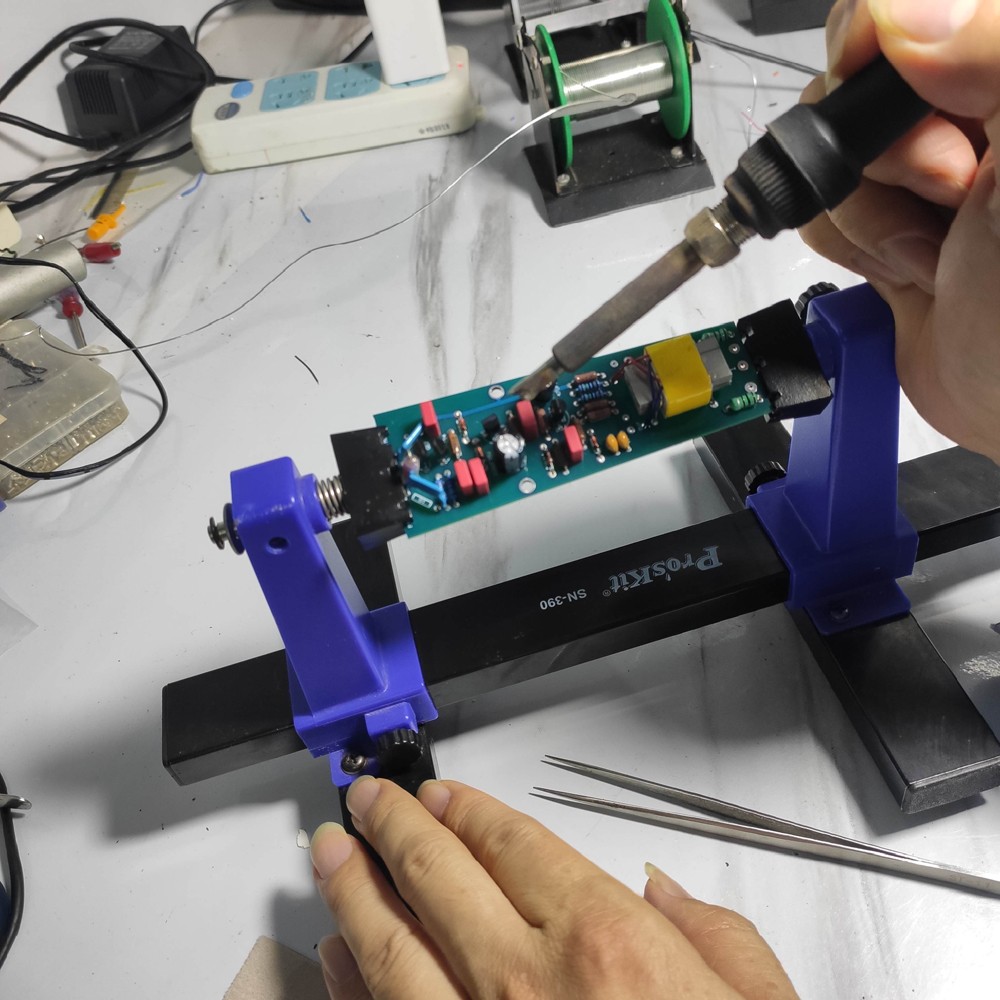

Pure manual circuit welding, precision grinding and carving, with a production capacity of only one piece per day.

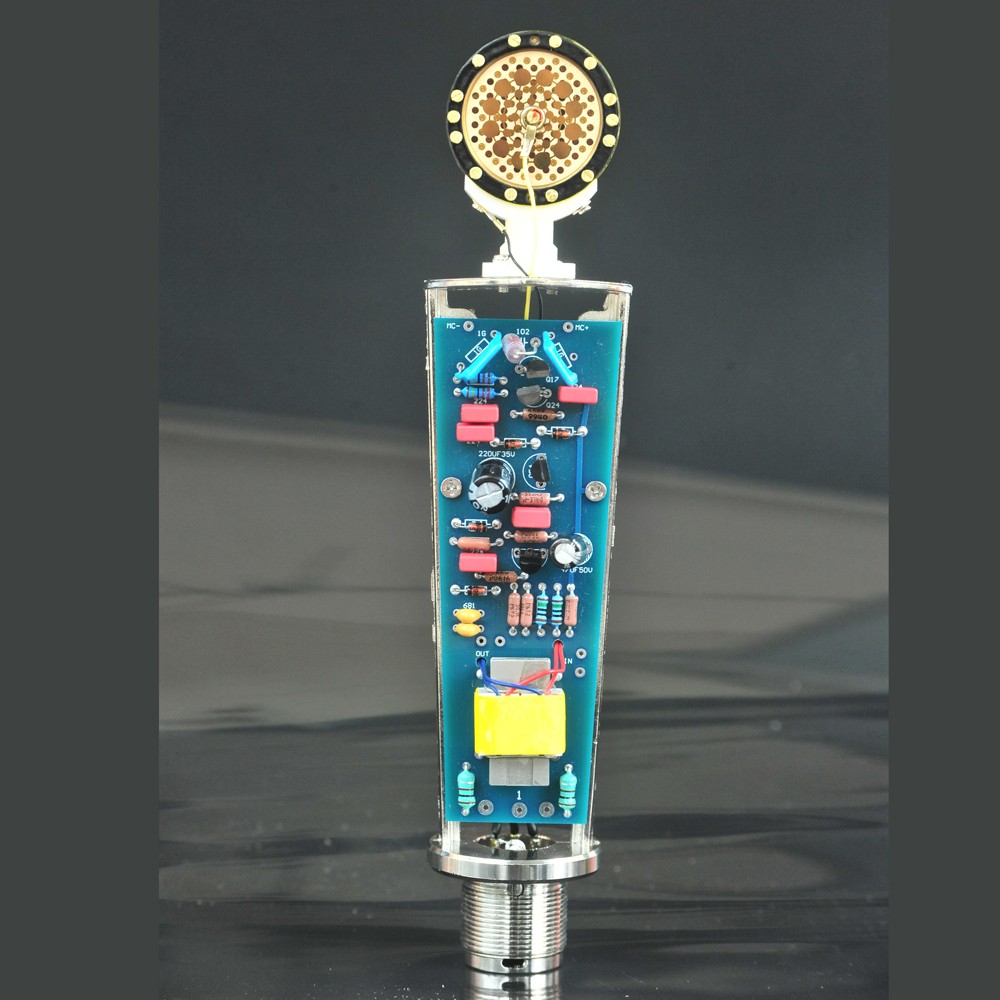

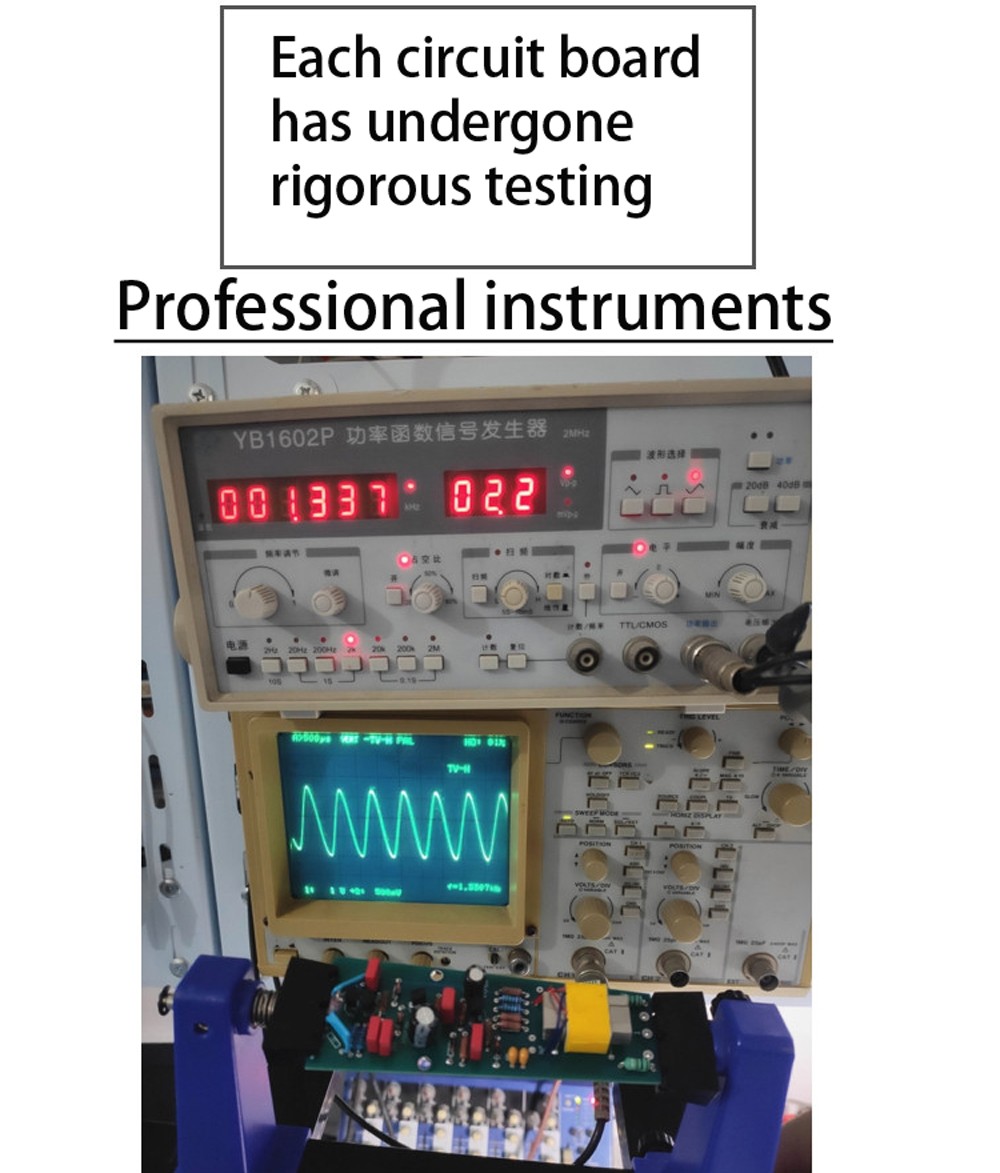

Each circuit board has undergone rigorous testing

Technical parameters:

Item No:MA29

Sound head: 34MM dot matrix gold plated pickup head

Frequency response: 25HZ-20KHZ

Sensitivity: -41dB+/-2dB (0dB=1V/Pa at 1KHz)

Directional characteristics: cardioid directionality

Output impedance: 200R+/-30% (at 1KHz)

Connection method: XLR Canon line

Load impedance: ≥ 1000R

Equivalent noise level: ≤ 10dB A (IEC581-5)

Maximum input sound pressure level: 140dB (THD ≤ 1.0% at

Maximum output voltage: 450MV

Weight: 510G

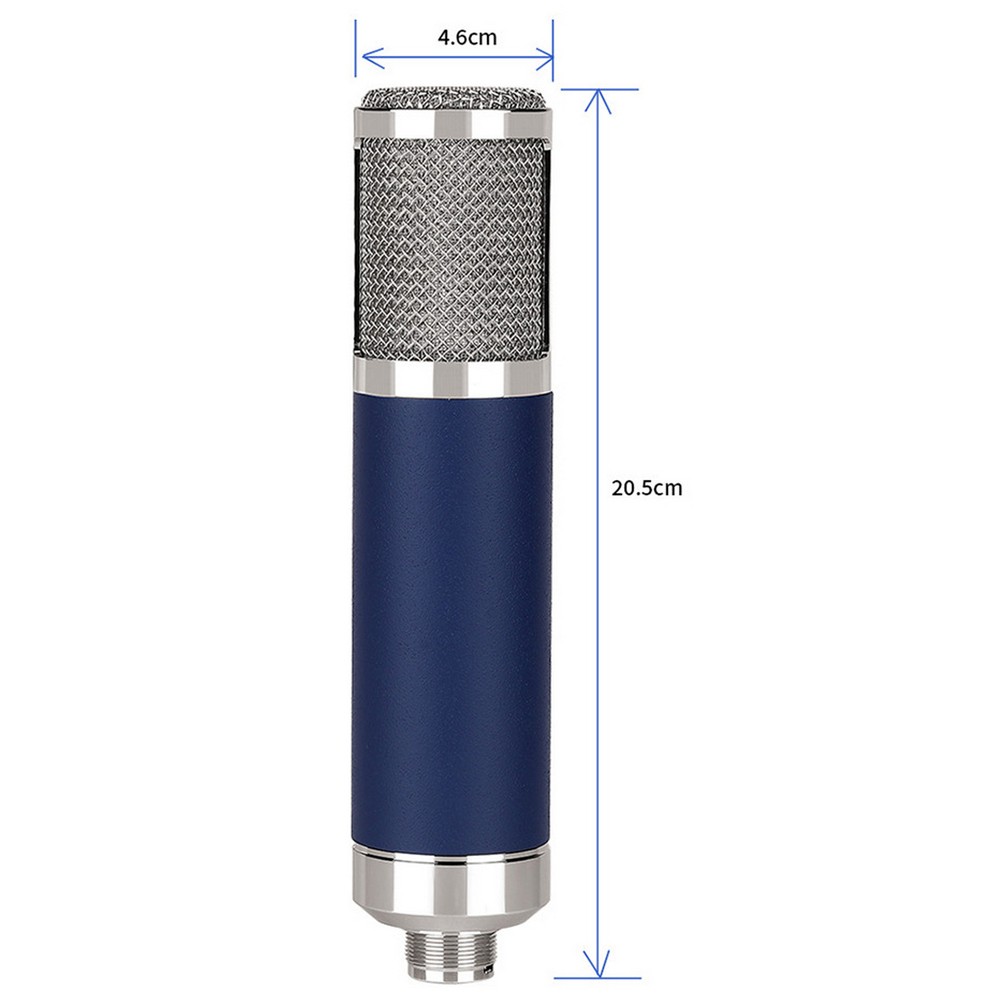

Size: D46 * 205MM

Power supply method: 48V phantom power supply

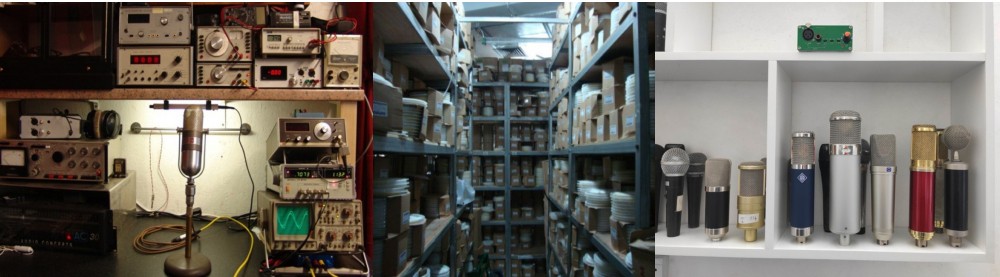

MaiAo Audio Man Handmade Workshop is a professional base that integrates the research and development, design, and production of professional microphones/amplifiers. With 15 years of experience in audio equipment research and design, I personally produce each microphone I distribute, and personally complete the research and development and design of circuit boards. We provide you with customized audio equipment that can meet industry standards.

Application scope: live streaming/karaoke/chat, professional recording studio/music recording/sound recording
